Linde Series 1152 T16-T20

Pallet Jack Electric

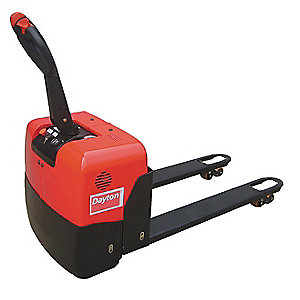

Standard Electric Pallet Jack, 3300 lb. Load Capacity, Fork Size: 6-5/16Close

close x

Using 360° Viewing:

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
  • Shipping Weight 705.0 lbs.

Country of Origin China Country of Origin is subject to change.

Note: Product availability is real-time updated and adjusted continuously. The product will be reserved for you when you complete your order.

Product Details

Electric drive and lift mechanisms, variable forward/reverse speeds, and push-button operation help provide effective product transportation with minimal operator effort. Features include an emergency braking system, a key lock for safety, an LED battery level meter, and a charger.

Technical Specs

  • Pallet Jack Style Standard
  • Load Capacity 3300 lb.
  • Construction Steel
  • Fork Height Lowered 3"
  • Fork Height Raised 7-11/16"
  • Width Across Forks 25-5/8"
  • Width Between Forks 13"
  • Fork Length 48"
  • Fork Width 6-5/16"
  • Pallet Jack Operation Electric
  • Key Pallet Jack Feature General Purpose
  • Overall Length 65-1/2"
  • Overall Width 27-5/8"
  • Overall Height 47-1/2"
  • Roller Dia. 2-7/8"
  • Main Wheel Size 10"
  • Wheel Material Polyurethane
  • Roller Material Polyurethane
  • Bearings Sealed Ball
  • Steering Arc 210 Degrees
  • Voltage 24
  • Handle Hand Controls
  • Finish Powder Coated
  • Color Black
  • Includes Battery Charger
  • Wheel Base
