to deploy and better supports the
drum roller in upright position
Place your drum onto the base plate
of the drum mixer with a drum truck
or a below-hook drum lifter.

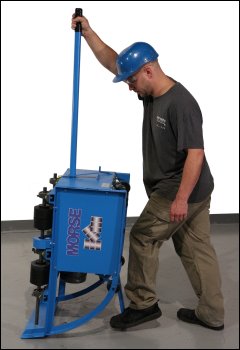

Improved Top Rim Hook to help
pull the drum over to rolling position
Engage the chine hook onto the
top rim of the drum, and use the
built-in retractable tipping lever
to load a heavy drum from
upright, to rolling position
on the drum mixer
Enclosure with Safety Interlock
to meet OSHA requirements,
shown with Portable Drum Roller
Wheeled Portable Drum Rollers
to rotate a steel drum on its side.
Add to roll a
Pour directly into a 5-gallon pail
from Portable Drum Mixer. Faucet
can be attached to drum while rotating.
Portable drum rollers are available drum with 20 RPM fixed speed, or variable speed to rotate a 55-gallon (210 liter) drum from 15 to 24 RPM
Agitate your drum's contents without even opening the drum! Incorporate important stratified or settled ingredients and eliminate sediment in the bottom of your drum.
Mixing in closed drums eliminates the hazards of worker exposure, and the messy cleanup associated with insertion mixers. This compact, portable mixer rolls a closed drum to blend the contents. You may also dispense directly from a drum through a faucet.
The built-in tipping bar provides leverage to assist in loading a drum upright onto the drum roller, and setting the drum back to upright when drum mixing is finished. The sides and back are enclosed to protect the drive.
OSHA Requires Enclosure with Safety Interlock for ALL drum rotatorsFeatures of Morse Portable Drum Rollers Compact industrial drum roller only 21" wide by 35" long (53 x 89 cm) Tipping lever with hook engages drum top rim to load drum onto the drum roller Roll various sized drums... Use as drain stand to dispense from drum Enclosed sides and back protect the drive mechanism Drum mixers available with various motors Capacity of Portable Drum Rollers Liquid Load: 500 Lb. (227 kg) Dry Load varies with drum RPM as a shifting dry load exerts greater stress on the drum mixer. 350 Lb. (159 kg) at 15 RPM 300 Lb. (136 kg) at 20 RPM 250 Lb. (113 kg) at 24 RPM Roll a drum on 4 drive and 4 idler oil-resistant, neoprene, 4" (10.16 cm) diameter wheels Roll a drum with: 6" to 28" (15 to 71 cm) in diameter Up to 40" (101.6cm) tall. Note: The tipping lever will only engage a drum 30" (76.2 cm) or taller.
Variable Speed Portable Drum Rollers
Allow you to vary drum rotation speed from 15 to 24 RPM (13 to 20 RPM on 50Hz models).
RPM is based on a 22.5" (57.2 cm) diameter drum.
Fixed Speed Portable Drum Rollers
Roll a 22.5" (57 cm) diameter drum at 20 RPM (16 RPM on 50Hz models).
The RPM of these model cannot be changed.
Customers use Morse Drum Mixers to:Blend batches of powder Ensure uniform batches Mix paint, oils, urethane resin, plastisol, glue, dyes, flavors, etc. Mix chemicals into homogenous product prior to use Keep epoxy from separating Grind and smooth parts in media Homogenize tailings and sediment samples Plasma spray powder mixing . . .and my favorite, "Roll propellant casting tubes for chemical prep prior to cast"
What will you use your drum mixer for?Combine Two Components to Meet Safety Requirements Drum Roller Guard Enclosure Kit to Meet OSHA Requirements
Guard Enclosure with Safety Interlock, so that drum rotator
automatically shuts of if enclosure gate in opened
Install all Morse Rotators in accordance with local requirements for enclosure and safety interlock, etc. One way to accomplish this is with a Morse enclosure with safety interlock, so the rotator automatically turns off when enclosure door is opened. Power connections and motor controls must also comply with applicable local codes.
For OSHA compliance in the USA, see OSHA subpart O.1910.212(a)(4) "Barrels, containers, and drums. Revolving drums, barrels, and containers shall...
