A strong team: The MT 3-2i

Wirtgen milling machines


The power package is not only ideally suited to comply with legal provisions regarding the maximum total weight of oversize transports but with its milling performance of 900 tonnes per hour also fully meets the high performance requirements of milling contractors. WIDIRVE machine managment system, which greatly improves operator comfort, electronic ISC travel drive control, PTS system (short for "parallel to surface") and a choice of three different milling drum speeds.

Find out about the components of WIRTGEN large milling machines

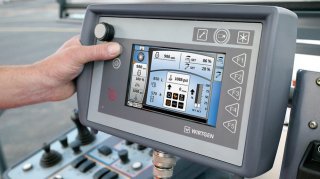

  1. Electrical system

    • Emergency operation
      Electrohydraulic power pack to raise machine in emergency mode.
    • Camera system
      Robust camera system including up to six cameras and up to two screens.
    • Job data
      Precise recording of job data including “truck full” message.

    Additional Information

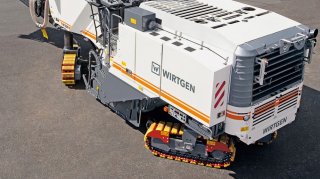

  2. Traction drive

    • Hydraulic pre-tensioning of track chains
      Hydraulically pre-tensioned track chains for optimized operation.
    • Traction control
      Intelligent electronic traction control system for the track units.
    • Track speed adjustment
      Electronic adjustment of the track speed during cornering to ensure maximum traction and low wear and tear.
    • Four-fold full-floating axle
      Four-fold full-floating axle for optimum machine stability.

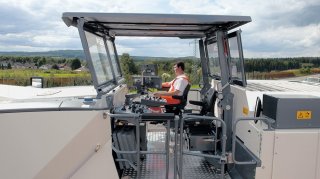

  3. Operator's platform

    • Multifunctional joystick
      Multifunctional joystick with driving, steering, selecting operating mode, raising machine and switching off conveyor functions.
    • Ergonomics
      Ergonomically designed, backlit controls for non-tiring, productive working.
    • Hydraulically moving and swivelling operator’s cabin
      Optionally available Operator Comfort System (OCS) for an ideal working environment.
    • Protective canopy
      Fixed protective canopy with telescoping side panels for maximum protection from inclement weather.
    • Parallel alignment of machine
      Automatic parallel alignment of the machine both during the milling operation and in transport mode.

    Additional Information

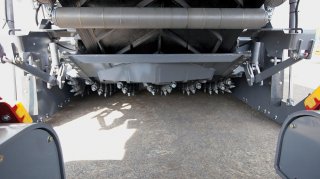

  4. Milling drum unit

    • Locking of scraper blade
      Automatic mechanical locking of scraper blade to ensure ease of operation.
    • FCS LIGHT
      FCS Light for the quick replacement of milling drums in FB2000 and FB2200 milling drum units.
    • HT22 quick-change toolholder system
      Extra efficient, tried-and-tested HT22 quick-change toolholder system as standard equipment.
    • Right-hand side plate lift of 450 mm
      Right-hand side plate can be raised by up to 450 mm to allow flush-to-kerb milling at the full milling depth.
    • Load-controlled water spray system
      Water spray system with automatic adjustment to the milling performance for optimum tool cooling.
    • Milling drum turning device
      Drum turning device to enable cutting tool replacement with the diesel engine switched off.
  5. Engine station

    • Three different milling drum speed options
      Three selectable cutting speeds for optimum millingperformance in a broad range of applications.
    • Load-controlled fan speed
      Fan speed governed by engine temperature for low energy consumption and low noise emission levels.

    Additional Information

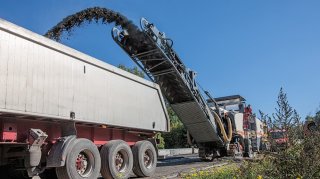

  6. Conveyor system

    • Large slewing angles
      Conveyor slewing angles of 60° to both sides to optimize the loading process.
    • Tremendous conveying capacity
      High conveyor loading capacity and drive power for highly effcient material loading.
    • Vacuum Cutting System
      Vacuum Cutting System for improved visibility.
    • Folding conveyor with locking mechanism
      Folding conveyor with intelligent mechanical locking mechanism for easy transport.

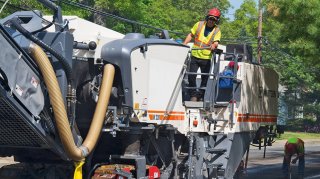

  7. Machine frame

    • Perfect visibility
      Slender machine frame design at the front including dual wasp waist for a perfect view of the milling edge.
    • Ease of transport
      Ease of transport due to low machine weight and variable supplementary weights of up to 1, 700 kg.

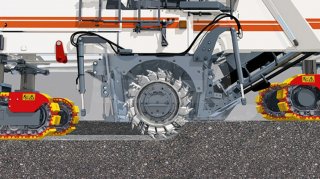

  8. Levelling

    • Large choice of sensors
      LEVEL PRO automatic levelling system as standard equipment, offering a large choice of sensors and highly precise control of the milling depth.
    • Milling depth indicator
      Milling depth indicator on the LEVEL PRO screen (showing difference between scraper blade and side plate positions).
    • Scanning in front of the milling drum
      Scanning in front of the milling drum via hydraulic cylinders with integrated measuring system – suitable for use also with the Multiplex system.
    • Automatic system to initiate the milling process
      Automatic system to initiate the milling process with load-controlled lowering speed.

    Additional Information

Detailed information about the W 220

Model W 220
Milling width 2, 200 mm7 ′ 3 ″
Milling depth 0 mm - 350 mm - 14 ″
Engine power 571 kW / 777 PS571 kW / 766 HP
Emission standards no EC regulation / US Tier 2no EC regulation / US Tier 2
Operating weight, CE * 36, 360 kg80, 160 lbs
Number of crawler tracks
W 220 Milling width 2, 200 mm7 ′ 3 ″ Milling depth 0 mm - 350 mm - 14 ″ Engine power 571 kW / 777 PS571 kW / 766 HP Emission standards no EC regulation / US Tier 2no EC regulation / US Tier 2 Operating weight, CE * 36, 360 kg80, 160 lbs Number of crawler tracks 4

Cold milling machine W 200 / W 200i

Compact 2-m machine for efficient milling jobs

View product

Cold milling machine W 200 Hi

Compact large milling machine for dual flush-to-kerb milling

View product

Cold milling machine W 210 / W 210i

Versatile high-performance milling machine for professional applications

View product
