Financing option for mixing trailersThe 1.75-yard portable concrete mixer is the big brother to the standard 1-yard Cart-Away mixing trailer.

A recent survey concluded that many mixing trailer customers use more than 1-yard of concrete per project. The MixKing is the perfect tool for these projects! This 1.75-yard portable concrete mixer will save you money by reducing the trips from your loading point to the job site! It is bigger, but still can be pulled behind a contractor pick-up truck.

The MixKing™ is a 10, 000 GVW trailer.
The MixKing™ can carry 1 ¾ Yards.
The MixKing™ uses a positive-lock drum cover.
The MixKing™ has 6 ply radial tires.
The MixKing™ has optional on-board water.
The MixKing™ can be pulled by Full-Size Pick-ups

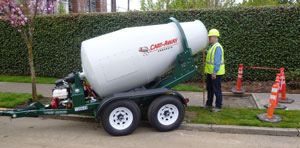

Both the Cart-Away standard 1-yard trailer and the MixKing™ use quality components. All Cart-Away® products are assembled with great care.

Both use the industry leading GearSaver™ knob for increased gearbox life. Both use the TandemFlex™ fenders to save on dented fenders. Both use the bullet-proof Honda 11hp engine and a hydraulic systems to work all the functions.

Both use powdercoating to protect the finish of the drum. The 1.75-yard portable concrete mixer uses a stronger pentle hitch system and the 1-yard trailer uses a 2” ball hitch.

Both trailers are a great investment and have the backing of the world’s largest producer of trailer-based concrete equipment, Cart-Away Concrete Systems, Inc.

WATCH A SHORT MIXER ASSEMBLY VIDEO

Specifications:

  • Hydraulic surge brakes (electric brake option)
  • Load range D ST225/75 15” radial tires 2540# rating
  • Empty weight 2, 700 lbs
  • 10, 000 GVWR or 1¾ cubic yard capacity
  • Precision rotating drum
  • 11 hp Honda Engine
  • Auburn Heavy Duty Gearbox
  • Ross hydraulic motor w/crossport relief
  • 4 wheel free-backing brakes
  • Vari-height adjustable tongue
  • Standard pintel ring
  • GearSaver Knob for gearbox safety
  • Dimensions 15’4” L x 5’7” W x 6’10” H
  • Tandem 5200lb. axles
  • D.O.T. Approved lights
  • Uni-body hydraulic valve
  • Tubular A36 structural steel frame
