DRIP STRIP

Gutter rollers


TRN – Turnstile Reel Stand
Machine mounted stand for holding reeled coils of material. Rotates 360 degrees for ease of loading. Machine capacity is 3 total.
__________________________________________________________
RL16 or RL20
Adjustable width reels for 11-3/4” through 15” wide coil for 5” or 6” gutters.
__________________________________________________________

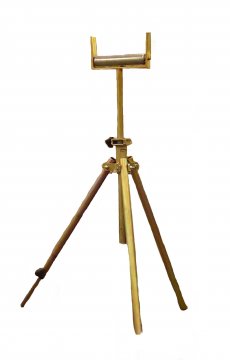

ROS1 – Run Out Stand
Supports gutter as it runs out of machine. Tripod style stands with 1 adjustable leg for leveling and conveyor roller to support gutter. One stand recommended for every 20’ of gutter. Adjustable in height from 31 ½” to 45”._________________________________________________________
ROS-3
Set of 3 run-out stands
__________________________________________________________
RAC – Transfer Rack
Used to transfer loaded coils from one turnstile reel stand to the other. (1 set / machine needed)
__________________________________________________________
SH5 – Geared Shear
Mechanically advantaged forward pulling shear for cutting 5” & 6” gutter to length.
__________________________________________________________
GFI – Ground Fault Interruption Plug
CR5-5/6 – Coil Cradle
Used to hold full or partial coils for 5” and 6” gutter. Can be machine or floor mounted. Capacity 700lbs.
__________________________________________________________
HK6 – Alcoa Hook
Forms a 5/16” hook on the back of the gutter for use with free float hanger system. Also accommodates standard hangers or spike and ferrule.
__________________________________________________________EZ-Counter Computerized Length Controller
Program up to 50 lengths, tracks material, offers miter options on all gutter machines, operate in feet and inches, inches only or centimeters. Operates as an Easy-touch screen.

_________________________________________________________________

BF 1-5 thru BF15-6 – Back Flange 1” and 1 ½”
Forms 1” or 1 ½” flange on back of 5” or 6”gutter eliminating the need for flashing. Used with 5” or 6” machine only.

_________________________________________________________
BF 5SH thru BF15-6H – Back Flange Shear
Mechanically advantaged forward pulling shear for cutting 5” and 6” back flange gutter to length.
__________________________________________________________
12V – 12 Volt Electrical System
DC Motor and control to allow operation of machine with 12 volt battery. (Battery not included).
__________________________________________________________
BB5 & BB6 – Bottom Bead Assembly
Adds unique design to bottom of gutter.
__________________________________________________________
CVR – Machine Cover
K-Tex synthetic canvas material, form fitted to body of machine.
__________________________________________________________
ELEC1 3/4 Hp, 110VAC, 60Hz, 1Ph, 11Amps
__________________________________________________________
ELEC2 3/4 Hp, 110VAC, 50Hz, 1Ph, 11Amps
__________________________________________________________
ELEC3 3/4 Hp, 230VAC, 50Hz, 1Ph, 5Amps
__________________________________________________________
