Mobile Asphalt mixing plant
MOBILE ASPHALT PLANT (TSD Series)
LINNHOFF Mobile Screen Drum asphalt mixing plant provides the answer to demands of pavement contractors to shift to new work sites throughout the year. Basic plant comprises of four semi-trailers. Complete plant installation is done within 7 days.
- Ease of Transportation.

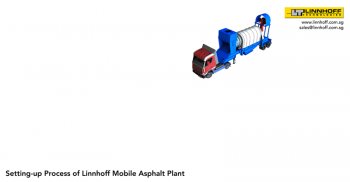

- Ease of Installation and setup.
- Ease of Dismantling and Demobilization.
- No concrete foundation required.
- No Heavy Lifting Equipment required at site.
- Able to produce Hot Mix Asphalt within a week.
- The Linnhoff Mobile Screen Drum Asphalt Plant with its unique patented design ensures multiple benefits.
Mobile Cold Feed Hoppers
Mobile Screen Drum
Mobile Weighing & Mixing Unit
Mobile Bag Filter & Control Cabin
Unique Features :
- Dual Purpose Screen Drum
Compact design drum is used for drying and screening. Heat from the inner drum is radiated to the outer aggregates while being screened. Thus ensuring 100% dryness of all aggregates.
- No Vibrating Screen
Energy savings in fuel due to shorter aggregate path traveled - minimal temperature loss resulting in lower fuel consumption.
- No Hot Elevator
Low maintenance as no chains, sprockets, extra motor and buckets are involved.
- Quality Mix
Quality mix is attained through the integration of four components.
Screening area provides efficient sorting of aggregates.
Accurate weighers achieving up to +/- 0.2% of the desired weight for Bitumen and accuracy of up to +/- 1% of desired weight for Aggregate. Mixing - Robust mixer provides thorough mixing to achieve homogeneous mix in minimum 12 seconds per batch.
- Temperature Control
Hot mineral and bitumen temperatures are measured and controlled by PLC to achieve the desired output value.
Model TSD1000 TSD1500 TSD2000 Capacity* 60-80 TPH 90-100 TPH 120-160 TPH
